STANDARD JAMB DEPTHS
S-Series: 3 3/4″, 4 5/8″, 4 7/8″, 5″ and 5 3/8″
C-Series (18 gauge): 3 1/2″, 3 3/4″, 4″, 4 5/8″, 4 7/8″, 5″, 5 3/8″, 6 5/8″, 6 7/8″ and 7 1/4″
CUSTOM JAMB DEPTHS
C-Series (18 gauge): 2 5/8″ to 13″ in 1/8″ increments.
Note: The available jamb depths and door weights listed here apply to the Classic Frame in general. Some limitations may apply when looking at specific information. For example, a communicating frame must have a larger minimum jamb depth than listed here.
| | |
|---|
| FRAME MATERIALS | DOOR SIZE & WEIGHT | JAMB DEPTH RANGES |
| Prefinished Steel | Door Thickness:
1 3/8" or 1 3/4"
Max. Door Weight:
250 Lbs.
Max. Door Width:
2 x 4' – 0"
Max. Door Height:
12' – 0″ * | Standard Jamb Depths:
S-Series (20 gauge)**: 3 3/4", 4 5/8", 4 7/8", 5" and 5 3/8"
C-Series (18 gauge):
3 1/2", 3 3/4", 4", 4 5/8", 4 7/8", 5", 5 3/8", 6 5/8", 6 7/8" and 7 1/4"
Custom Jamb Depth:
C-Series (18 gauge): 2 5/8" to 13" in 1/8" increments. |
| | |
| | |
* Height on custom Jamb Depths is limited to 10' – 1"
All widths and heights are inside dimensions – net door or glass opening size. | | |

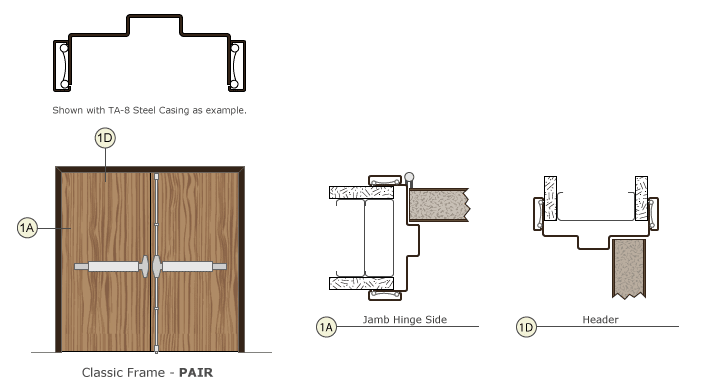

ROUGH OPENING DIMENSIONS Rough Opening Classic Pair – Rough Opening
WIDTH
For a pair of doors, the rough opening with is 1 1/4″ larger than the total nominal width of the doors plus the width of any astragal mounted between the doors.
Width is sum of the nominal width of both doors leaves plus the astragal if it is mounted between the doors
ROUGH OPENING: Nominal Door width(s) + astragal width (if mounted between the doors) + 1 1/4″
HEIGHT
For a pair of doors, the rough opening height is 1″ over nominal height or 13/16″ over net height. Since Timely standard frames are actually 3/16″ longer than the nominal height (Timely 7’0″ frames are actually 7’0 3/16″ long).
Height is the inside dimension of the frame
ROUGH OPENING: Net door height + 1″
Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
Wood casing: can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.
Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
STANDARD FINISHES
PRE-MATCHED CUSTOM FINISHES
ELITE SERIES
430 BRIGHT STAINLESS STEEL (ES204)
304 #4 BRUSHED STAINLESS STEEL (ES206)
Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.
Notes: Color chips available upon request, all finishes are semi-gloss unless otherwise specified. Touch-up paint available upon request, colors may vary slightly. For complete technical information, contact your Timely distributor or our Marketing Service Department. Colors & price subject to change.
