Pair

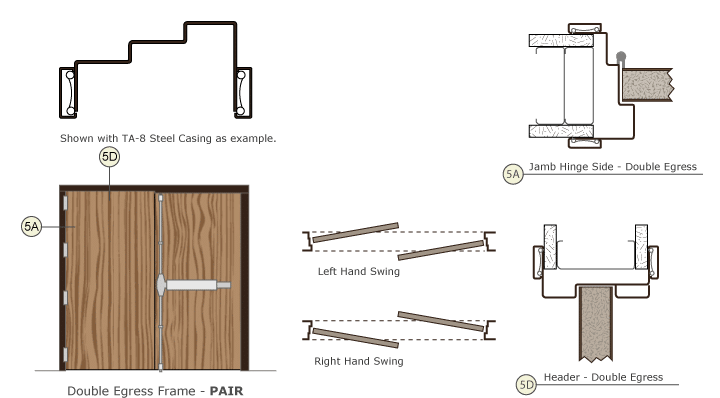

DOUBLE EGRESS FRAME (DE-SERIES)

Click to enlarge.

The prefinished steel DE-Series Double Egress Frame is commonly used for openings requiring Doors swinging in opposite directions.

All of our prefinished steel door frames are manufactured utilizing Hot Dipped Galvanized (HDG) material.  HDG provides superior corrosion resistance in the harshest environments making Timely much easier to specify.

Our DE-Series Double Egress Frames are made using C-Series (18 gauge).

Unlimited finishing options include our standard colors, pre-matched custom colors, and project matched custom colors.

Fire Ratings up to 90 minutes are available.

Mullions are not available for DE-Series Double Egress Frames.

Our DE-Series Double Egress Frames will accommodate 1 3/4″ doors weighing up to 250 lbs each.

AVAILABLE IN JAMB DEPTHS

4 7/8″ to 8″ in 1/8″ increments.

WP DataTables

TA-8 STEEL

TA-23 ALUMINUM

TA-28 ALUMINUM

TA-30 STEEL

WOOD CASING

Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.

Wood casing: can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.

Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

STANDARD FINISHES

BROWNTONE
(SC101)

AUTUMN BROWN
(SC102)

BLACK
(SC103)

STONE GRAY
(SC106)

WESTERN WHITE
(SC107)

ALUMATONE
(SC108)

PRIMER
(SC109)

PRE-MATCHED CUSTOM FINISHES

NAVAJO WHITE
(CC104)

WINTER WHITE
(CC105)

WHITE WHITE
(CC301)

WHITE SMOKE
(CC302)

BONE CHINA
(CC303)

DESIGNER WHITE
(CC304)

SNOW WHITE
(CC311)

CHARCOAL
(CC401)

CAPE COD GRAY
(CC402)

NEUTRAL GRAY
(CC403)

NICKEL
(CC404)

DRIFTWOOD
(CC501)

SANDY BEACH
(CC502)

CAMEO BEIGE
(CC503)

THUNDER
(CC511)

BLACK BEAN
(CC611)

URBANE BRONZE
(CC612)

BROWN SUGAR
(CC601)

COCOA
(CC602)

DOESKIN
(CC603)

HARVEST MOON
(CC604)

CORDOVAN
(CC701)

RUBY RED
(CC702)

PACIFIC BLUE
(CC801)

TWILIGHT
(CC802)

JADE
(CC901)

KENTUCKY GRASS
(CC902)

OCEAN SPRAY
(CC901)

MALIBU GREEN
(CC904)

BLACK NICKEL
(CC905)

ELITE SERIES

430 BRIGHT STAINLESS STEEL (ES204)

304 #4 BRUSHED STAINLESS STEEL (ES206)

Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.

Notes: Color chips available upon request, all finishes are semi-gloss unless otherwise specified. Touch-up paint available upon request, colors may vary slightly. For complete technical information, contact your Timely distributor or our Marketing Service Department. Colors & price subject to change.
